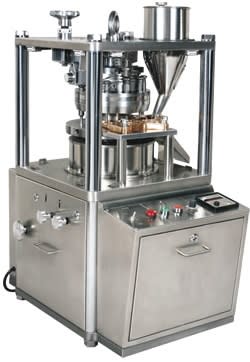

Mini Rotary Press
Mini Rotary Press



Qty:

Description

Please call us to order this machine 1-888-208-8558 (toll free).

  • Square GMP Table Top Model
  • Centre drive fitted with Gearbox
  • Paint free tablet manufacturing zone
  • Turret of Special Grade S.G. Iron casting
  • Digital tablet and RPM counter, as a standard feature
  • Inter lock Switches to all Guards, as a standard feature
  • A.C. Variable Drive, as a standard feature
  • Pre-Compression facility as a standard feature
  • Lower Guard of polished Stainless Steel & Upper Guards of Acrylic Material.
  • Aluminum Turret Guards
  • Imported needle roller bearing provided at the bottom of turret.
  • Anti Vibating mount.
  • Reverse direction motion protection is provided to avoid accident.
  • Grease Nipples are provided for effective lubrication, where required
  • The machine is available with force feeding attachment (Optionally)
  • The machine is available with poly carbonate upper guards (Optionally).
  • The machine is available with PLC control system.

BulletMachine TypeMINI -10BMINI - 8DMINI - 10D
BulletNo of Station10810
BulletToolingBDD
BulletOutput /Hr. Min-Max.8,000 to 18,0004,800 to 14,0006,000 to 18,000
BulletTurret RPM Min/Max10 - 3010 - 3010 - 30
BulletMax. Operating Pressure6 Tons6 Tons6 Tons
BulletMax. Tablet Dia.16 mm22 mm22 mm
BulletLength of Die
BulletMaximum Depth of fill17.5 mm20.5 mm20.5 mm
BulletUpper Punch Penetration2 to 6 mm2 to 6 mm2 to 6 mm
BulletDia. of Die mm30.1 mm38.1 mm38.1 mm
BulletLength of Die mm22.22 mm23.71 mm23.71 mm
BulletDia of Punch mm18.99 mm25.349 mm25.349 mm
BulletPower
2.0 HP X 1440 RPM X 415 V. X 50 Hz
BulletOverall H X W X D (cm)
48 x 67 x 105 H
BulletNet Weight (Approx)
350 kg to 600 kg
